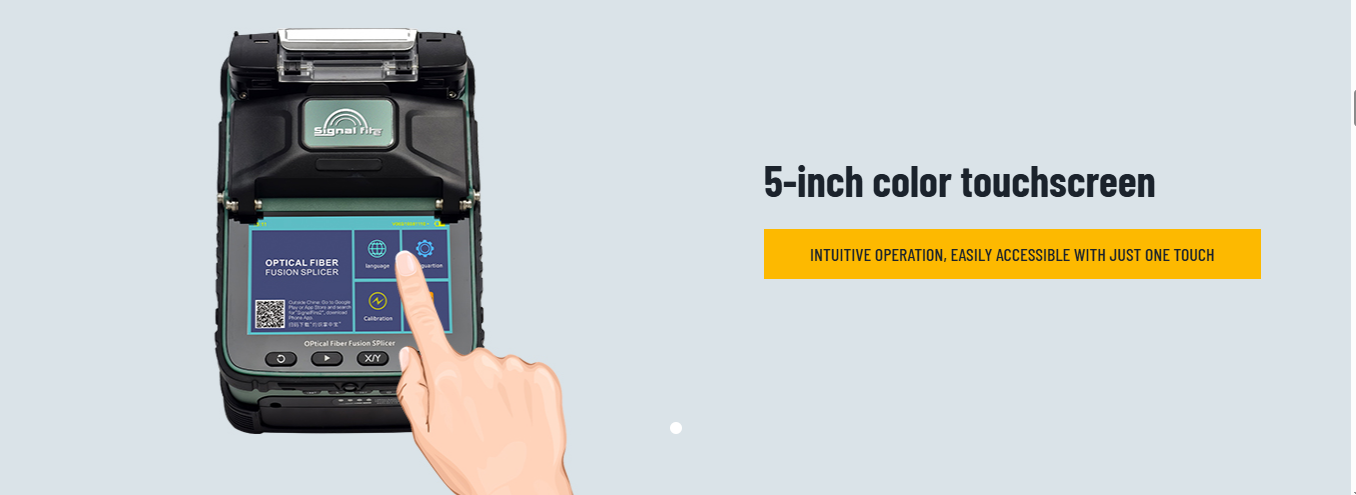

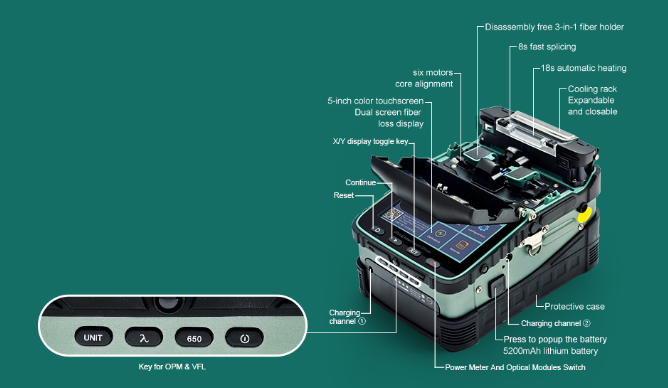

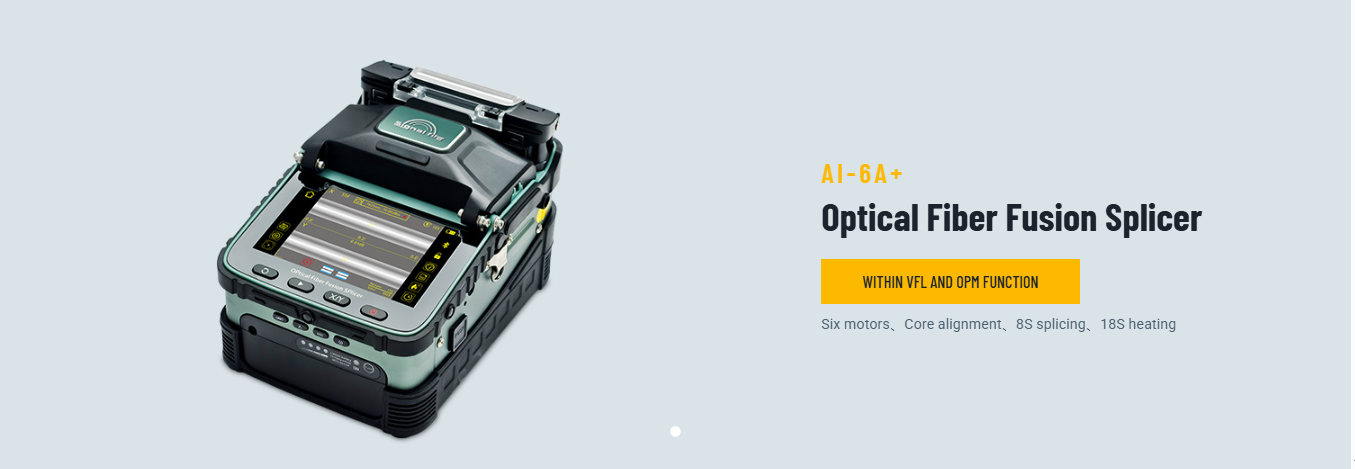

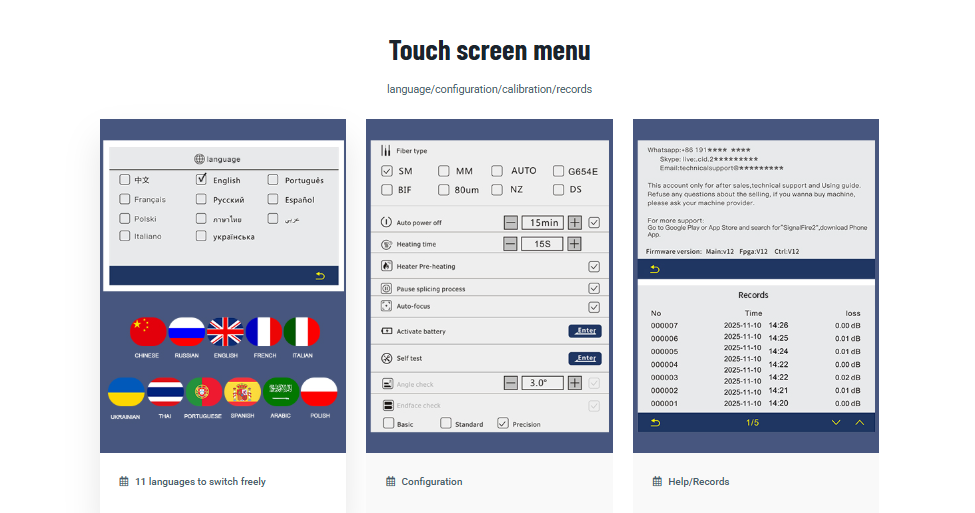

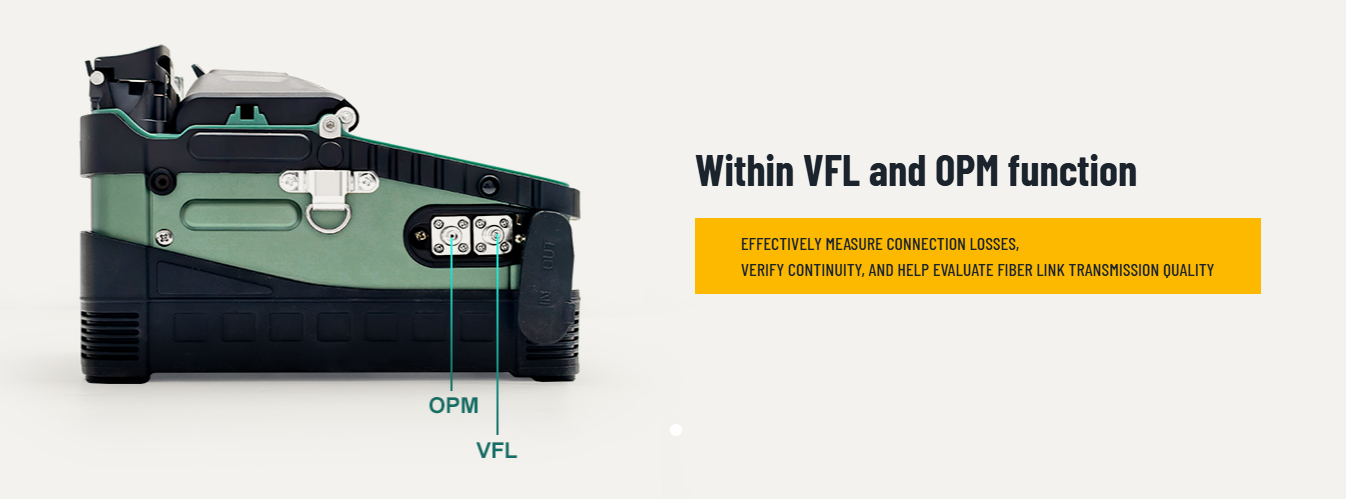

Signal Fire AI-6a+ optical fiber fusion splicer is an economical six motor machine, mainly suitable for security monitoring, FTTH entry, and short distance outdoor fiber fusion splicing. The machine adopts industrial CPU, which runs quickly; Adopting a 5-inch color touchscreen with a simple and intuitive interface, magnified 320 times, making it easy to observe the fiber core with the naked eye; 8 seconds high-speed splicing, 18 seconds heating; The machine comes with OPM and VFL functions, which make it more efficient compared to ordinary splicing machines; 5200mAh large capacity lithium battery, capable of splicing and heating around 160 cells, comes with a cooling rack that can be turned off or unfolded. The machine is equipped with 11 major global languages, allowing users to choose and remotely upgrade software systems. AI-6a+ will surely exceed your expectations!
| Fiber alignment | Core/cladding |
|---|---|
| Motor number | Six motors |
| Splicing time | 8s |
| Heating mode | 18s, customizable according to environment |
| Fiber type | SMF, MMF, DSF, G.654, NZ-DSF, BIF; suitable for bare fiber, pigtail, drop fiber, patch cord, invisible fiber |
| Cladding diameter | 80-150μm |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Splicing mode | Automatic focusing core alignment, high precision welding |
| Splicing way | Automatic / Semi-automatic |

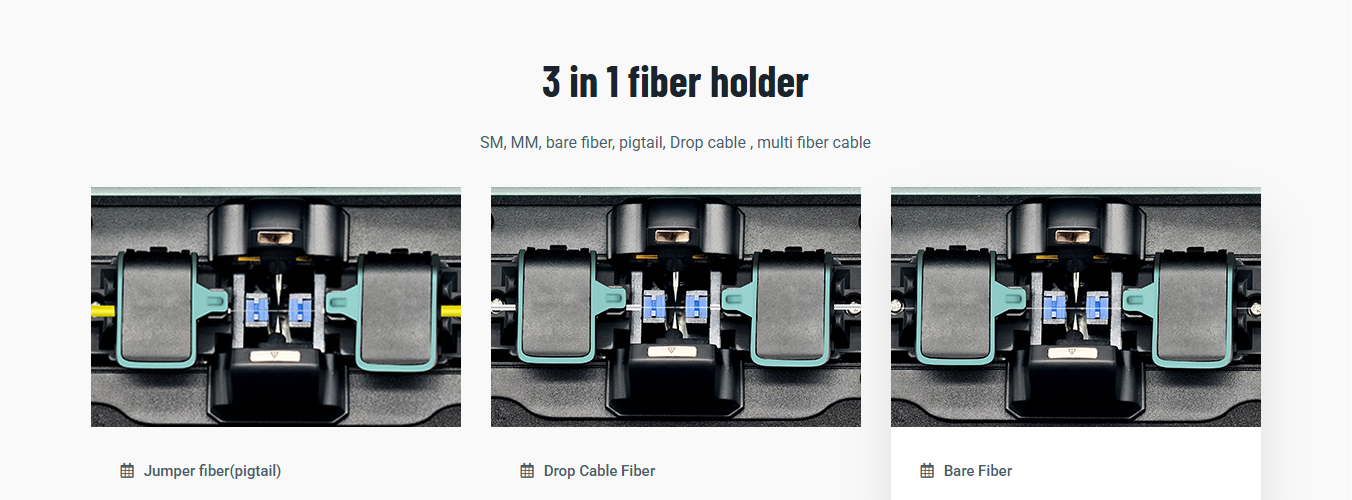

| Fiber holder | Three-in-one fixture for all fiber types |

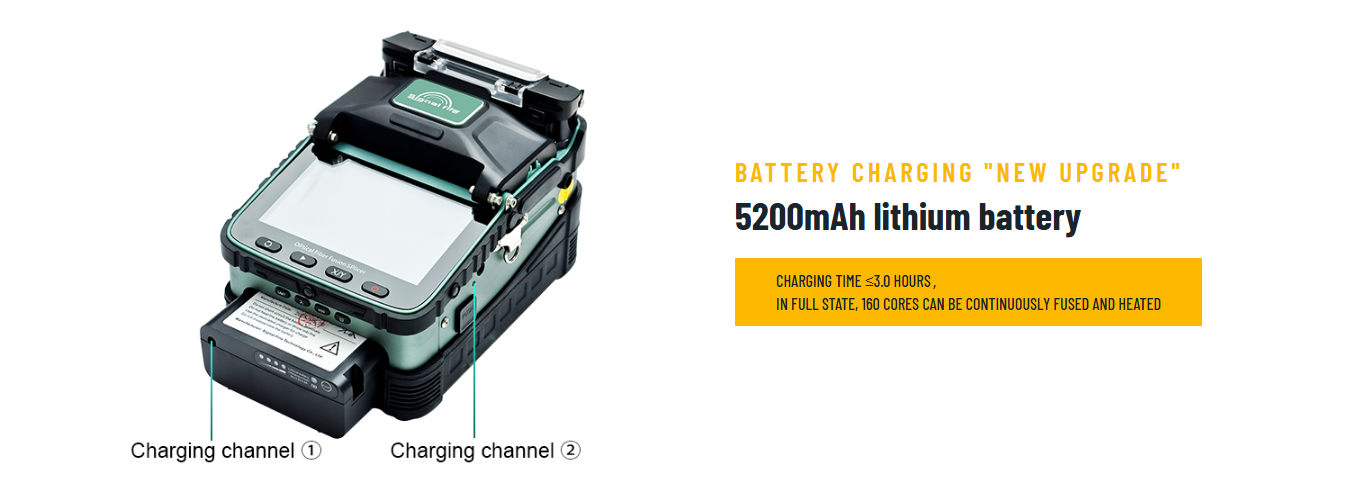

| Battery capacity | 5200mAh lithium battery, 160 cores continuous welding |
| Magnification | 300x single, 150x dual display |
| Fiber diameter | 80-150μm / 100-1000μm |
| Cutting length | 8-16mm / 16mm |
| Heat shrink tube | 60mm, 50mm, 40mm, 25mm |
| Tensile testing | Standard 2N |
| Display | 5 inch TFT color screen |
| External lighting | USB external LED supported |
| Charge mobile device | USB can charge phone |
| Boot time | 1s |
| Data storage | 1000 records + cloud export |
| Wireless communication | Bluetooth 4.2, range 60m |
| Software upgrade | Mobile APP Bluetooth update |
| Management function | Remote monitoring via mobile APP |
| Interface | USB 2.0 Type A |
| Return loss | Better than 60 dB |
| Product protection | Waterproof, dustproof, fall proof |
| Power supply | AC100-240V input, DC13.5V output |
| Working environment | -15℃ to +50℃, humidity <95% |
