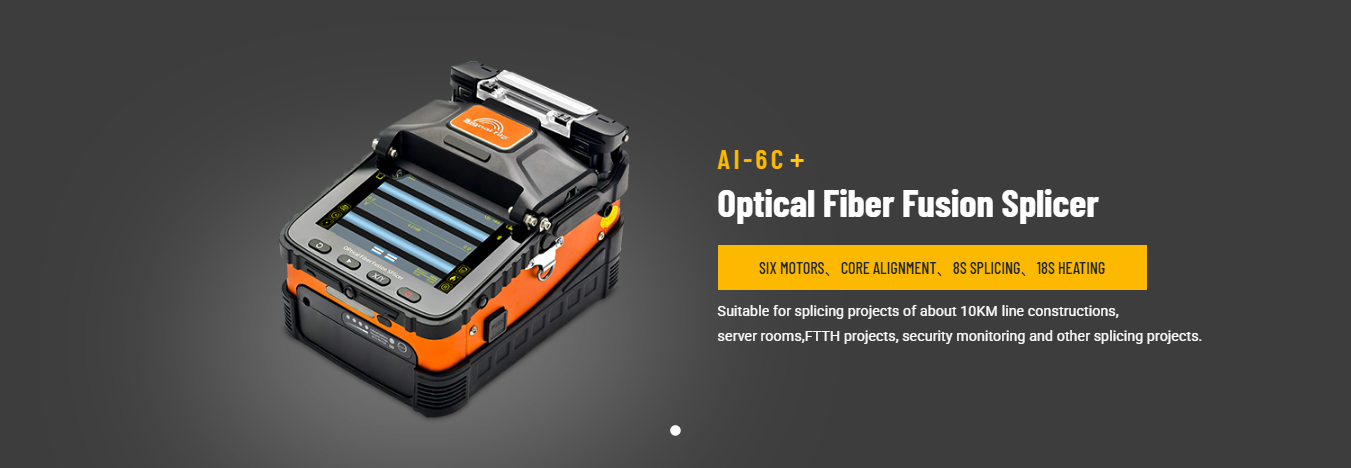

Signal Fire AI-6C/6C+ optical fiber fusion splicer is an economical six motor machine, mainly suitable for security monitoring, FTTH entry, and short distance outdoor fiber fusion splicing. The machine adopts industrial CPU, which runs quickly; Adopting a 5-inch color touchscreen with a simple and intuitive interface, magnified 320 times, making it easy to observe the fiber core with the naked eye; 8 seconds high-speed splicing, 18 seconds heating; 5200mAh large capacity lithium battery, capable of splicing and heating around 160 cells, comes with a cooling rack that can be turned off or unfolded. The machine is equipped with 11 major global languages, allowing users to choose and remotely upgrade software systems. AI-6C/6C+ will surely exceed your expectations!
| Fiber alignment | Core/cladding |
|---|---|
| Motor number | 6 motors |
| Splicing time | 8s |
| Heating mode | 18s, customizable according to environment |
| Fiber type | SMF, MMF, DSF, NZ-DSF, BIF, bare fiber, pigtail, drop fiber, patch cord |
| Cladding diameter | 80-150μm |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Splicing mode | Automatic core alignment |
| Splicing way | Automatic / Semi-automatic |
| Battery capacity | 5200mAh lithium battery |
| Magnification | 300x / 150x dual display |

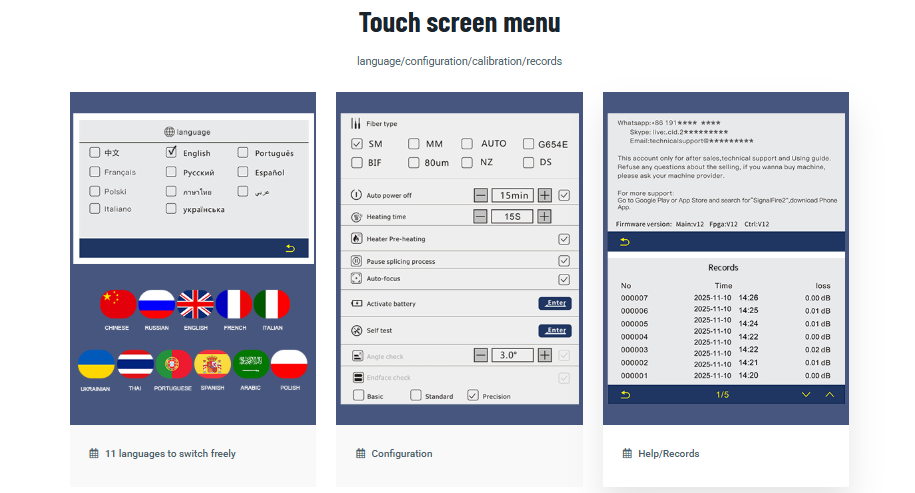

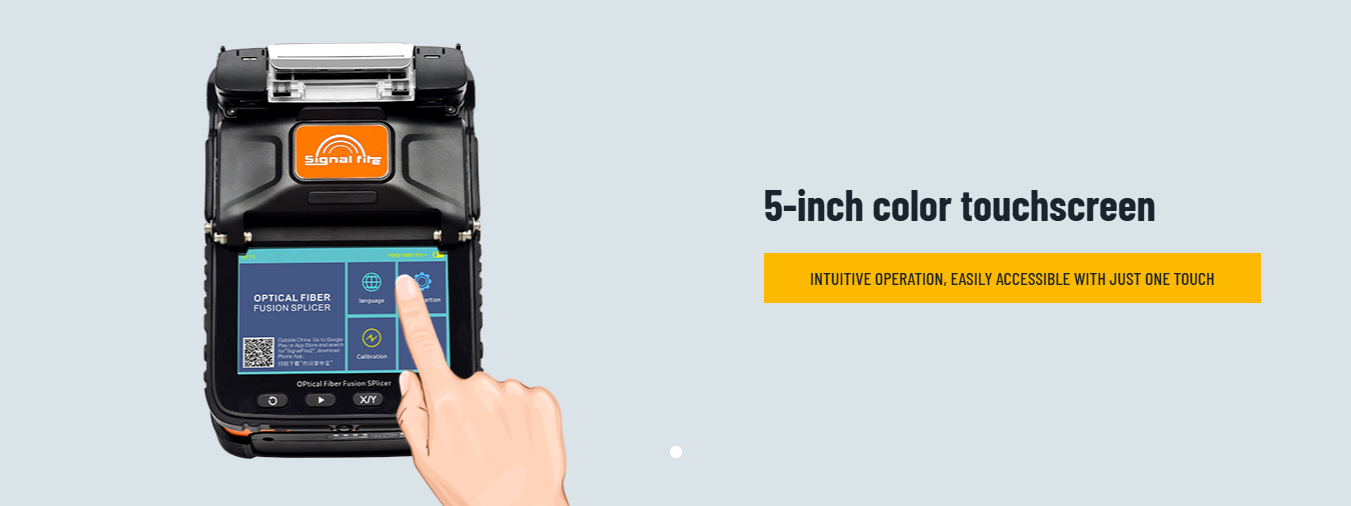

| Display | 5-inch color touchscreen |
| Return loss | Better than 60 dB |
| Power supply | AC100-240V input, DC13.5V output |
| Working environment | -15℃ to +50℃, humidity <95% |
